Mobile Signal Booster Installation Layout & Guide

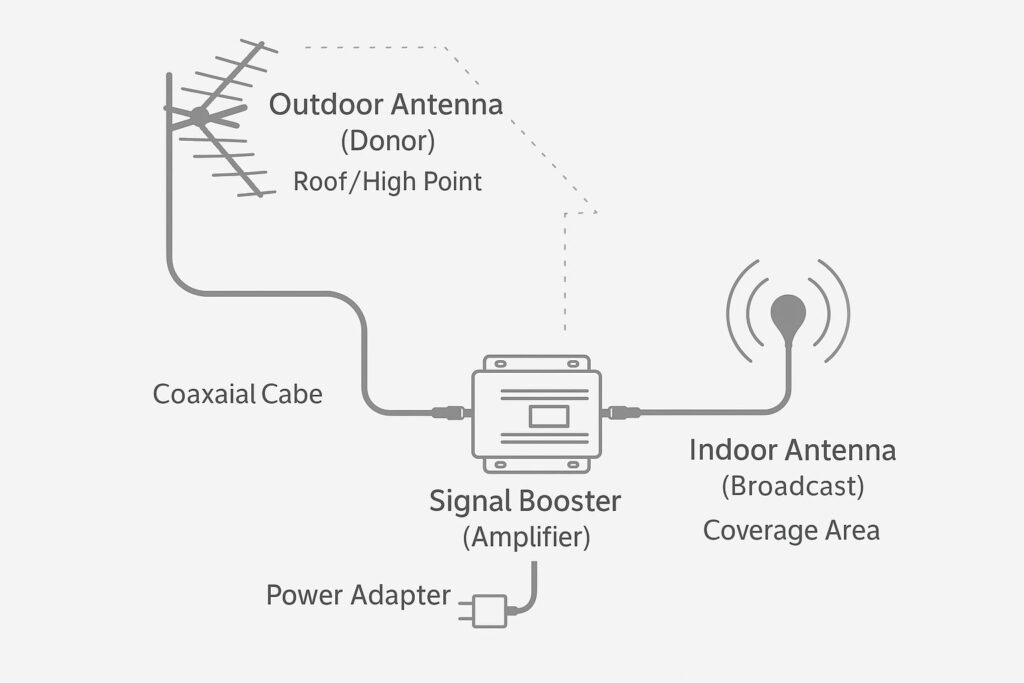

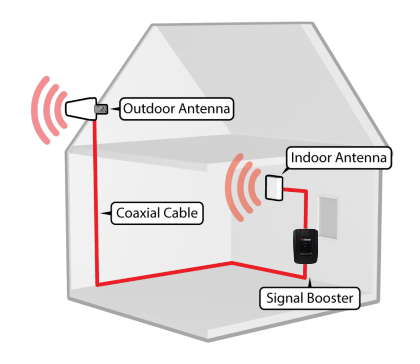

1. Components Required:
Outdoor (Donor) Antenna – Captures the mobile signal.
Signal Booster (Amplifier) – Enhances the signal strength.
Indoor (Broadcast) Antenna – Distributes the boosted signal inside.
Coaxial Cables – Connect the components.
Power Adapter – Powers the booster unit.
—
2. Installation Steps:
Step 1: Select the Best Outdoor Antenna Location
Find the spot with the strongest mobile signal (usually on the roof or high wall).
Use a mobile signal app or phone field test mode to check signal strength.
Mount the outdoor antenna in the direction of the nearest tower.
Step 2: Install the Signal Booster (Amplifier)
Place the booster inside the building, away from direct sunlight and heat sources.
Ensure proper ventilation for better performance.
Step 3: Position the Indoor Antenna
Install the indoor antenna in the area where you need better coverage.
Keep at least 10-15 meters distance between outdoor and indoor antennas to avoid interference.
Step 4: Connect All Components
Use high-quality coaxial cables to connect the outdoor antenna to the booster.
Connect the booster to the indoor antenna using another coaxial cable.
Plug in the power adapter and turn on the booster.
Step 5: Test & Adjust
Check mobile signal strength after installation.
Adjust the outdoor antenna direction for the best signal reception.
Ensure there is no signal interference or feedback.
